P200S AC servo driver
Category:
P series AC servo driver
P2000S AC servo driver, with powerful internal motion control function, can complete position, speed, torque, return to the original point and other control methods. It supports I/O control and standard ModbusRTU protocol. It can replace PLC or pulse module in some occasions, reducing application costs.
Keywords: die-casting series
Product details
characteristic:
1. Easy connection with touch screen (HMI);
2. Use PLC for RS485 motion control;
3. Direct control through switch;
4. Direct control through switch;
Specifications:
| model | P200S | |
| output power | 1KW~3KW | |
| Main circuit transmission Incoming power supply |
Single phase/three-phaseAC220V-15%~+10% 50/60Hz | |
| control mode | 0: Position control mode; 1: Speed control mode; 2: Torque control mode; 3: Mixed control mode of position and speed; 4: Position torque hybrid control mode; 5: Speed torque hybrid control mode | |
| Protection function | Overspeed/main power overvoltage and undervoltage/overcurrent/overload/encoder abnormality/control power abnormality/position out of tolerance | |
| Monitoring function | Speed/current position/command pulse accumulation/position deviation/motor torque/motor current/operation status, etc | |
| control input | 1: Servo enable 2: alarm clear 3: CCW drive inhibit 4: CW drive inhibit 5: deviation counter clear 6: command pulse inhibit 7: CCW torque limit 8: CW torque limit | |
| Control output | Servo ready/servo alarm/positioning completed/mechanical braking | |
| Energy consumption braking | Support built-in and external | |
| Applicable load | Less than 3 times of motor inertia | |
| Display operation | 5-bit LED digital tube display, 4 operation keys | |
| Communication mode | RS485 | |
| position control | Input mode | 0: Pulse+direction |
| 1: CCW/CW pulse | ||
| 2: A/B two-phase quadrature pulse | ||
| 3: Internal position control | ||
| Input Electronics Gear ratio |
Gear ratio numerator: 1-32767 | |
| Denominator of gear ratio: 1-32767 | ||

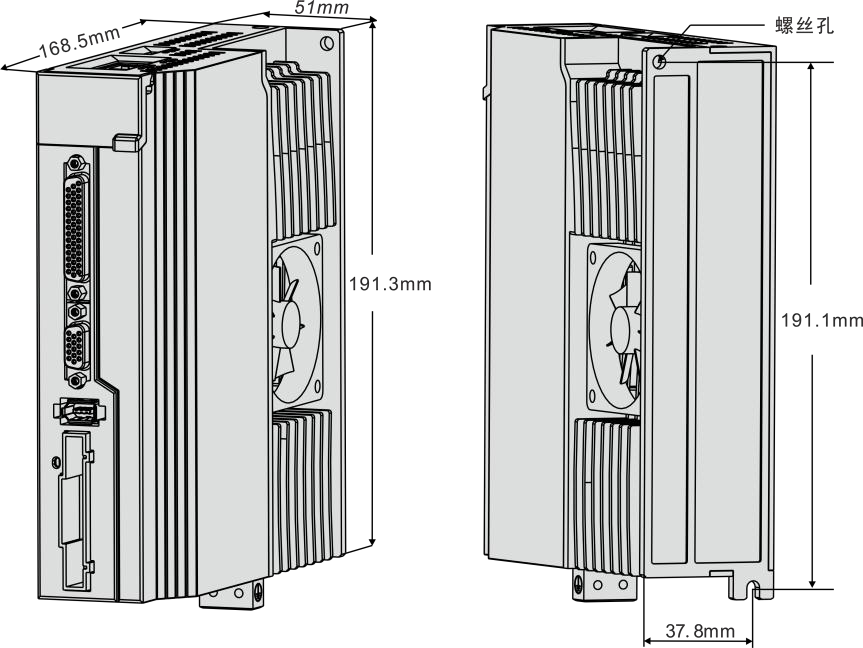

Overall dimensions

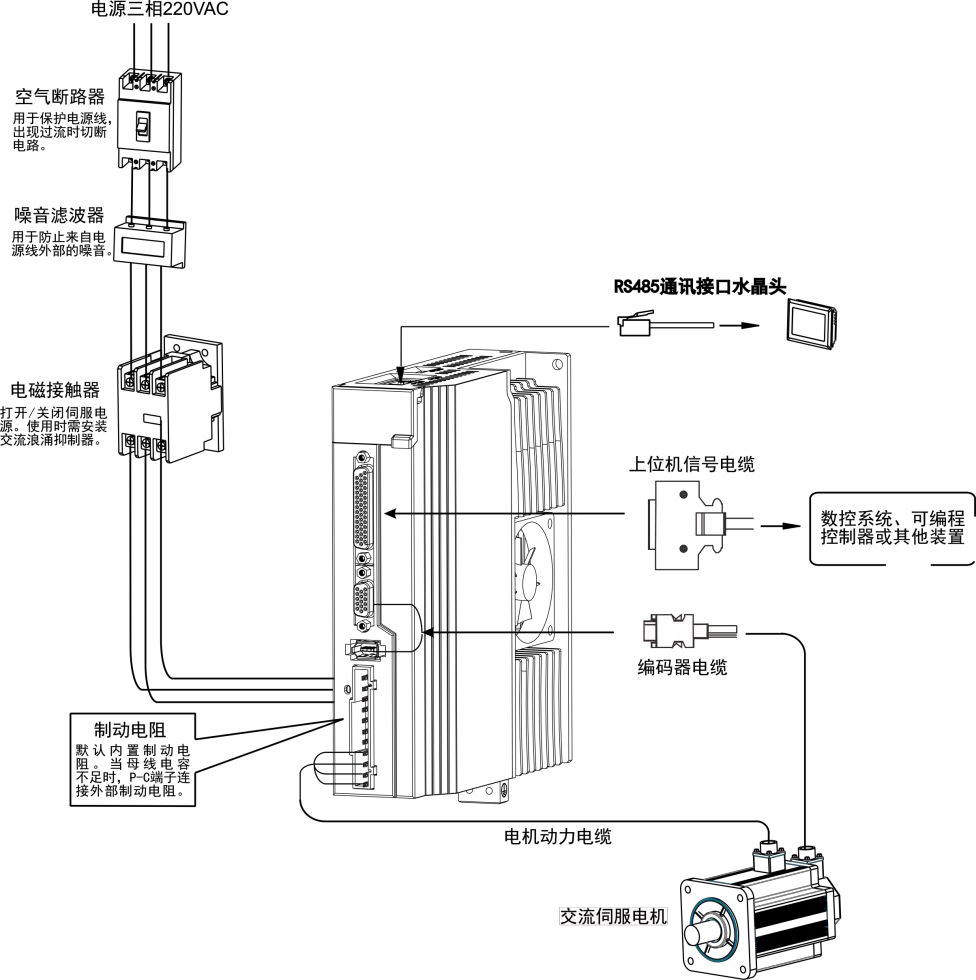

wiring method
