P200E AC servo driver
Category:
P series bus AC servo driver
P200E series servo is a bus type servo driver with bus communication function added on the basis of P series high-performance AC servo driver. Using EtherCAT bus communication interface, based on EtherCAT slave technology, the transmission rate of 100Mb/s realizes real-time control and real-time data transmission of the servo system. The driver has rich input and output interfaces and supports CSP, CSV, CST, PP, PV, PT and HM operation modes. Compared with the traditional pulse type servo driver, the driver is particularly suitable for long-distance, multi axis linkage applications, which can greatly reduce wiring and enhance the reliability of the driver operation.
Keywords: die-casting series
Product details
characteristic:
1. The working voltage is AC 220V ± 10%, single-phase/three-phase, 50/60Hz;
2. Support EtherCAT communication protocol, and the address is automatically assigned through the master station;
3.8 Single ended co anode isolation input function, the maximum input frequency is 10KHz, and the input voltage is 24V;
4.6 optocoupler isolated output, the maximum output capacity is 50mA, and the maximum withstand voltage is 30Vdc.
Specifications:
| output power |
1000W~3000W | monitor function |
Speed/current position/command pulse accumulation/position deviation/electricity Machine torque/motor current/running state, etc |
|
| Main circuit Input power |
Single phase/three-phase AC220V-15%~+10% 50/60Hz |
control mode |
0: Position control mode 1: Speed control mode 2: Test run control mode 3: JOG control mode 6: Torque control mode |
|
| protect function |
Overspeed/main power overvoltage/undervoltage/overcurrent/overload/programming Coder abnormal/control power abnormal/position out of tolerance, etc |
control input |
1: Negative limit 2: positive limit 3: origin signal 4: CCW drive inhibit 5: CW drive inhibit 6: deviation count Clear the device 7: command pulse prohibition 8: CCW torque limit 9: CW torque limit |
|
| energy consumption braking |
Built in/external | apply load |
Less than 3 times of motor inertia | |
| control output |
Servo ready output/servo alarm output/positioning Complete output/mechanical brake output |
display operation |
5-bit LED digital tube 4 keys | |
| position control |
Input mode | Bus communication | ||
| Input Electronics Gear ratio |
Gear shaft ratio accuracy: 1-131,072 Gear ratio motor accuracy: 17 bit, 23 bit absolute value |
|||

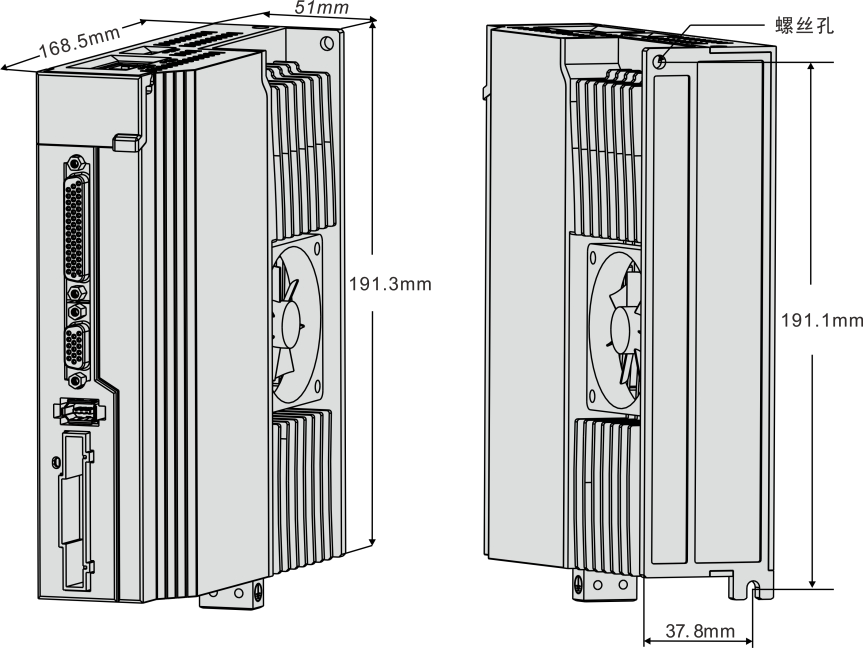

Overall dimensions

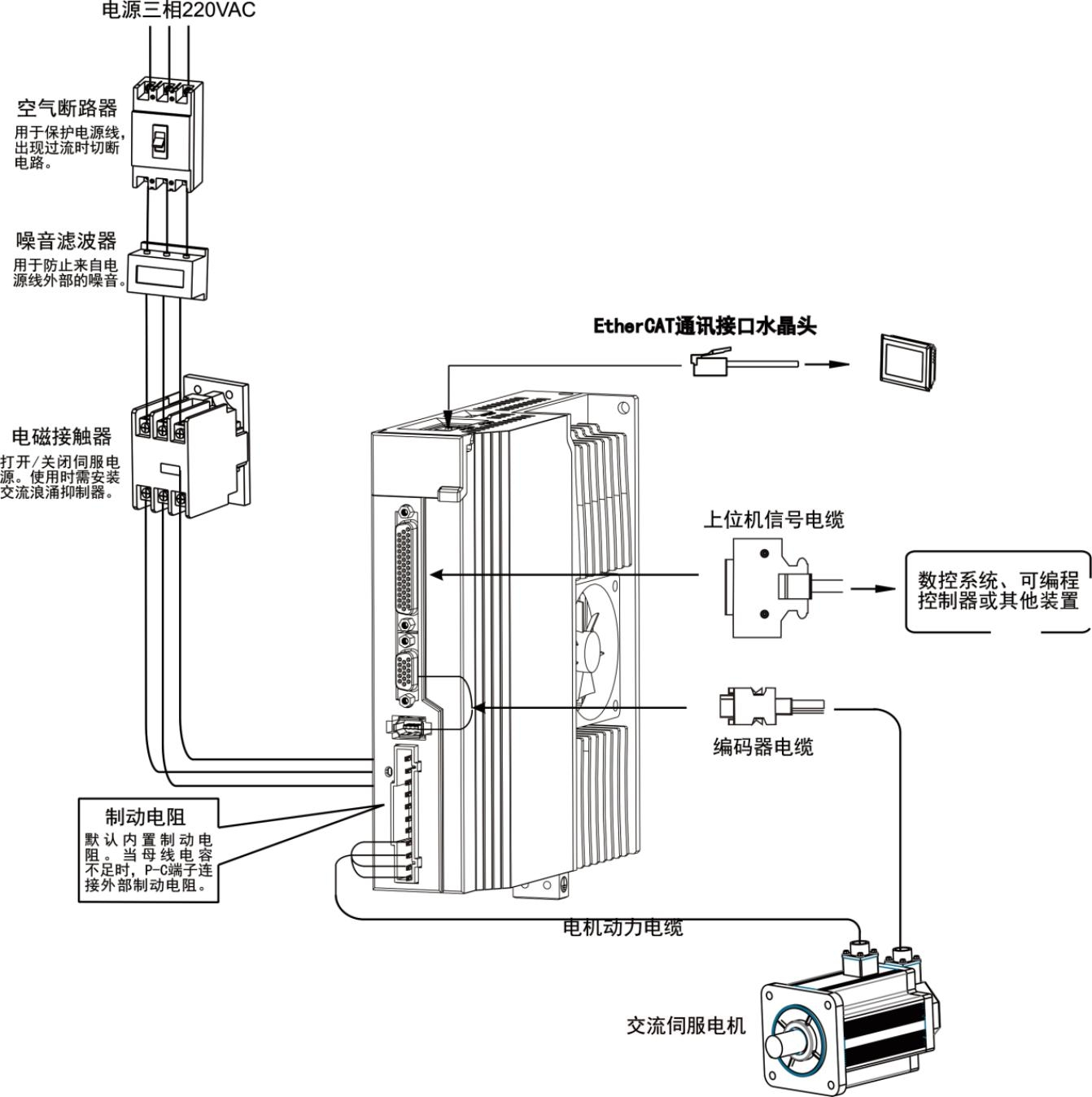

Wiring method
